Description

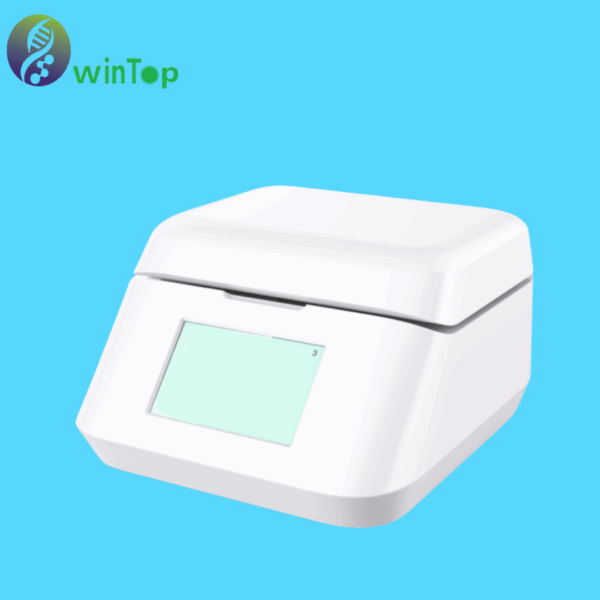

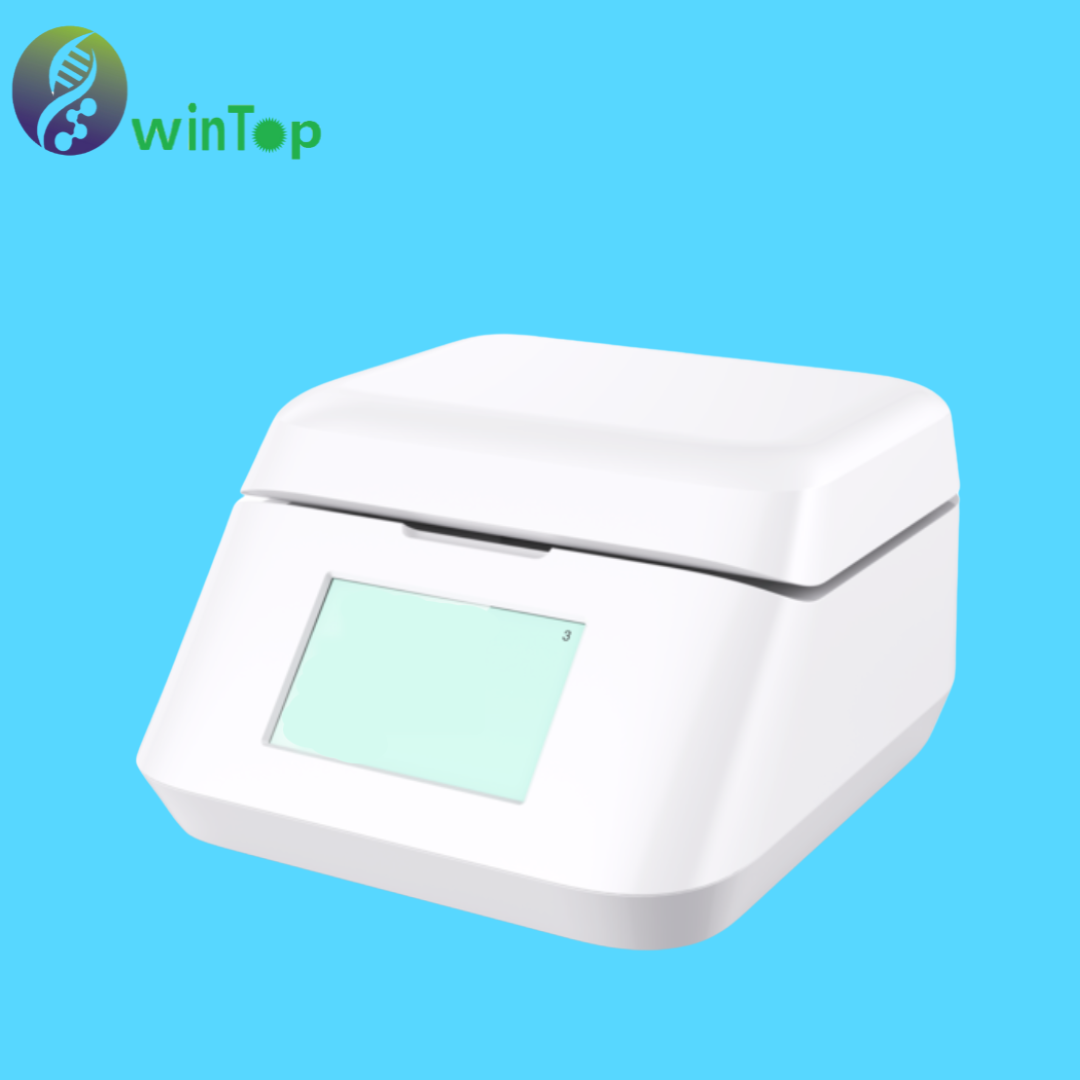

The Cell Thawing System (For Cryobags) is a high-efficiency, safe device specifically engineered for cryobags, enabling rapid and uniform cell recovery in a controlled, water-free environment to prevent contamination. Equipped with an intelligent temperature control system, it minimizes thermal fluctuations, reduces cell damage, and maximizes viability. Its user-friendly operation and reproducible results make it ideal for cell therapy, research, and biopharmaceutical applications, supporting standardized and efficient cell processing.
Features
✔ Ice crystal control, uniform thawing, adjustable chamber
✔ Ozone sterilization, data export, real-time monitoring
✔ Temperature calibration, access control, overheat protection
✔ Water-free process – Eliminates contamination risks
Product Specifications
Model |
Thawcradle |
|---|---|
Operation Mode |
Fully automated, water-free heating |
Compatible Cryobags |
50ml–1000ml |
Sample Capacity |
30ml–500ml |
Thawing Time |
3–10 minutes |
Thawing Mechanism |
– Dual heating (top & bottom)– Adjustable heated lid for varying bag sizes/shapes– Gentle agitation for even heating and optimal viability |
Starting Temp. Protection |
Default: -20°C (configurable) |
Ice Crystal Control |
Adjustable parameters for ice crystal size |
Auto-Sterilization |
One-touch ozone disinfection (internal & external) |
Chamber Dimensions |
230×170mm (adjustable dividers for flexible spacing) |
Completion Alert |
Audible prompt upon thawing completion |
Display |
Touchscreen with real-time visualization– Color-coded status indicators |
Audible Alarms |
– Temperature deviation– Thawing complete– Overtime removal |
Data Tracking |
– Two-tier access control– Exportable logs– GMP-compliant audit trail |
Power Consumption |
Max. 300W (energy-efficient) |
Input/Output Voltage |
AC 100-240V / DC 12V, 50-60Hz |
Operating Conditions |
5°C–35°C, ≤75% RH |
Current |
15A |
Power Plug Options |
US, UK, EU |
Dimensions (L×W×H) |
400×445×255mm |
Certification |
CE |
Weight |
13kg |
